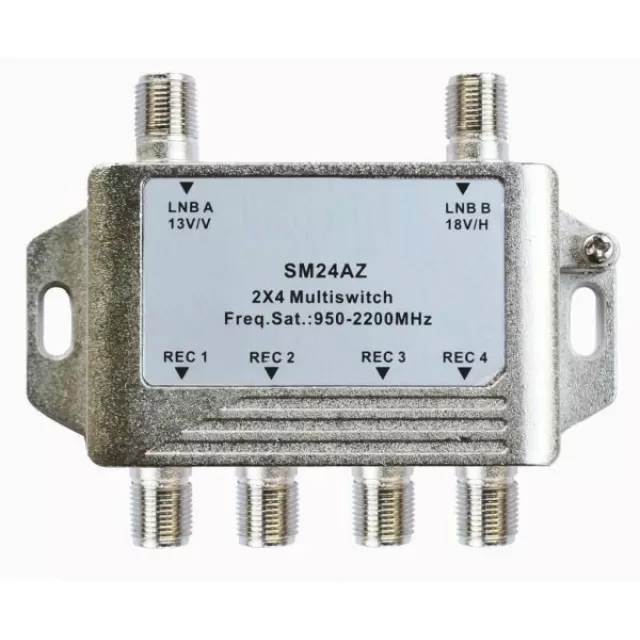

Multi Switch 2 LNB Input - 4 Receiver Output

FEATURES:
«Zinc die-cast housing, nickel-plated
«Applicable to multi-satellite and multi-receiver usage
«Excellent quality component, professional circuit design and low loss
«13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
«Distributed into four subscribers to use simultaneously and no mutual interference
«Capable of connecting two SATV signals simultaneously, which is switched through 13/18V
SPECIFICATIONS
Item Specification Item Specification
Frequency Range 950-2200(MHz) Normal Working Voltage 12-20(V)
Insertion Loss   5(dB) DC Power Consumption 30(mA)
Isolation 25(dB) DC Max Power Passing 500(mA)
Return Loss 10(dB) Impedance(all ports)   75(W)
2in 4outputs Multiswitch for satellite dish--SM24Z
